Name: PUB.mbta_rapid_transit

Display Field: LINE

Type: Feature Layer

Geometry Type: esriGeometryPolyline

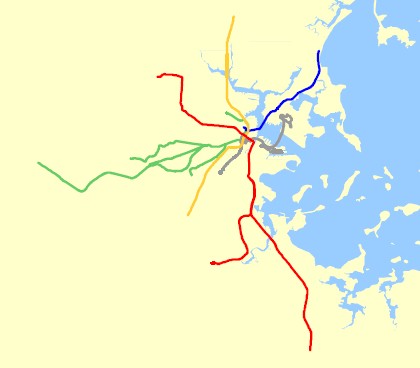

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>The MBTA Rapid Transit Station layers represents the station stops on the five subway, streetcar/trolley and Silver Line bus lines in the Massachusetts Bay Transportation Authority’s rapid transit rail network. The five ‘T’ lines - Blue, Green, Orange, Red and Silver - are represented with linework in the layer MBTA_ARC. Stations are contained in a point feature class named MBTA_NODE. The layers were developed by the Central Transportation Planning Staff (CTPS), with additional editing by MassGIS based on current information from mbta.com. The MBTA Commuter Rail lines are included in the TRAINS_ARC layer. It should be noted that the Silver Line actually consists of buses, not trains, but the line is included in this layer because the MBTA includes it as part of its Subway system (see http://www.mbta.com/schedules_and_maps/subway/).</SPAN></P></DIV></DIV></DIV> Migrated from EGIS.DOIT.mbta_rapid_transit on vsql22 on February 2023

Service Item Id: 446de982f9ac41b8a50fb3ba3766ecc2

Copyright Text: Central Transportation Planning Staff, mbta.com, MassGIS

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 723068.4784008316
YMin: 2901047.2408729144
XMax: 793541.4299743376
YMax: 2984749.438297584
Spatial Reference: 102686  (2249)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [145, 94, 33, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• LINE ( type: esriFieldTypeString, alias: LINE, length: 6 )
• ROUTE ( type: esriFieldTypeString, alias: ROUTE, length: 50 )
• GRADE ( type: esriFieldTypeInteger, alias: GRADE )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
